RAM X-GRIP PHONE MOUNT WITH HANDLEBAR U-BOLT BASE

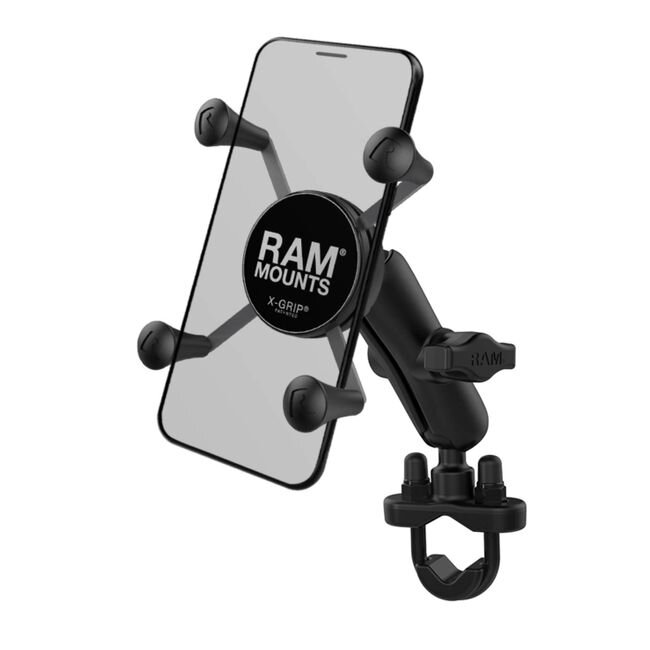

The RAM-B-149Z-UN7U consists of a zinc-coated u-bolt base, double socket arm, and universal X-Grip® cradle.

Included in this package is hardware that will accommodate rails from 0.5" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allows for almost infinite adjustment and perfect viewing angles. The included composite rail adapter can narrow the rail to a minimum width of 0.5". The included X-Grip® cradle has a clean and clever four-leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring-loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit for your cell phone. The perfect complement to the modern sleek interior of today's vehicles, the RAM X-Grip® is the cell phone cradle evolved. The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

Features:

Spring-loaded 'X' design with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use
Includes a U-bolt base that accommodates rails from 0.5" to 1.25" in diameter and a medium length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
Specifications:

CLAMP RANGE: 0.5" (12.7mm) - 1.25" (31.7mm) diameter
HOLDER DIMENSIONS: Width Range: 1.875" (47.6mm) - 3.25"(82.5mm), Depth Range: 0.875" (22.2mm) max
SOCKET-TO-SOCKET LENGTH: 3" (76.2mm)
BALL SIZE: B Size (1", 25.4mm)

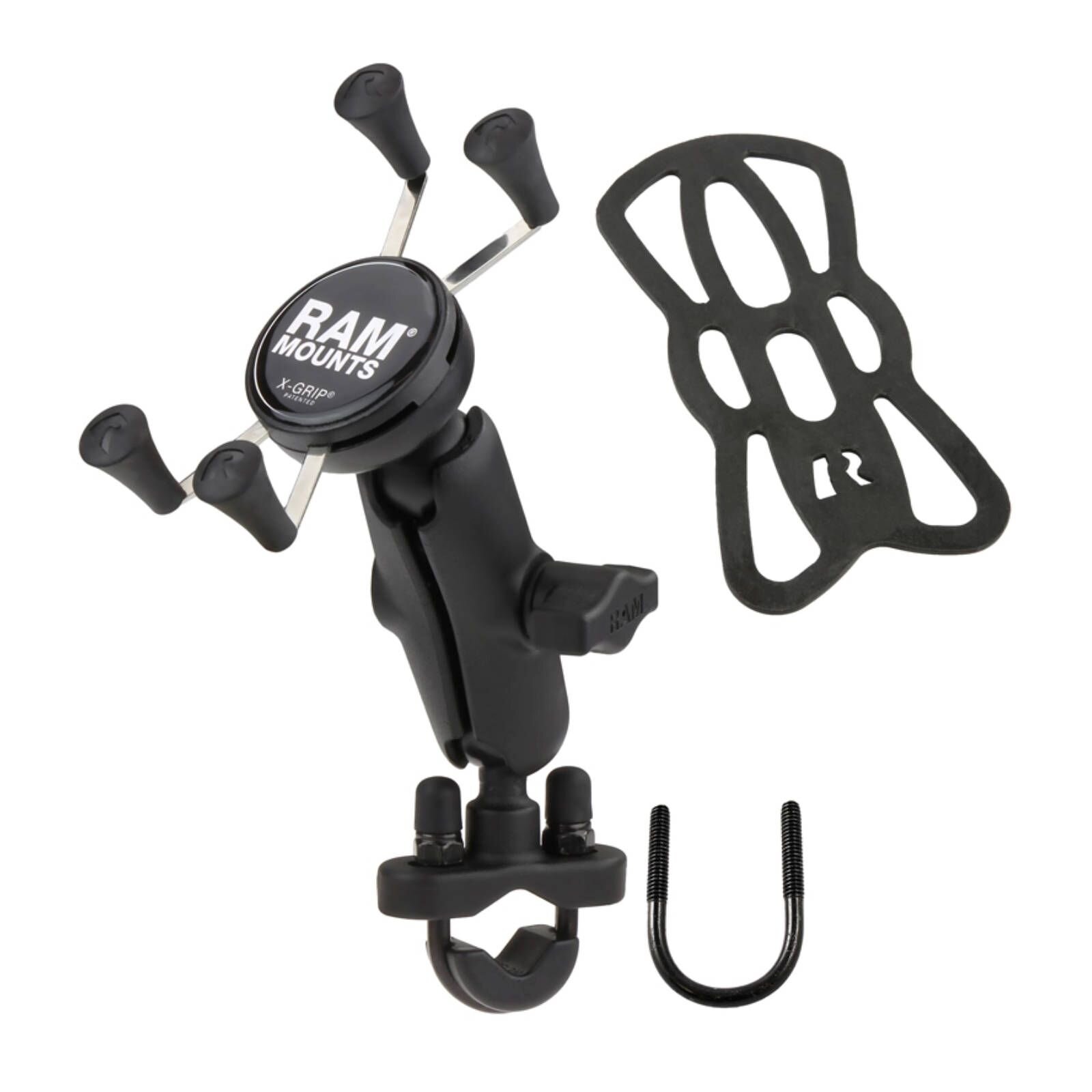

Assembly Hardware Included:

x1 Optional Tether
x1 Glue Tube for Rubber Caps
x1 1/4"-20 U-Bolt for .5" - 1" Rails
x1 1/4"-20 U-Bolt for 1" - 1.25" Rails
x2 1/4"-20 Nylock Nuts
x2 Rubber Caps
x1 U-Bolt Spacer
